BA 1000

Precise absolute pressure transmitter for atmospheric pressure

Overview
Technical data
Downloads
Images

Absolute pressure transmitter for measurement of atmospheric pressure

Special features

  • High level of accuracy and long-term stability
  • Little zero point drift or hysteresis; largely independent of temperature
  • Can be adjusted (reduction) to the altitude of the place of installation
  • Available for a variety of measuring ranges, output signals and supply voltages

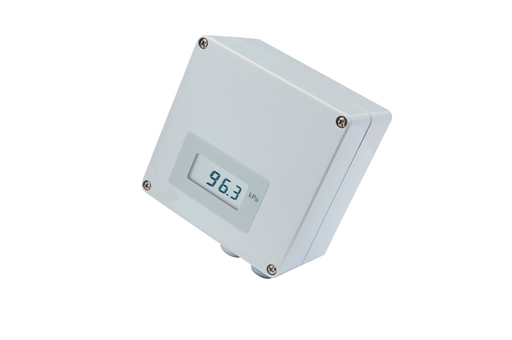

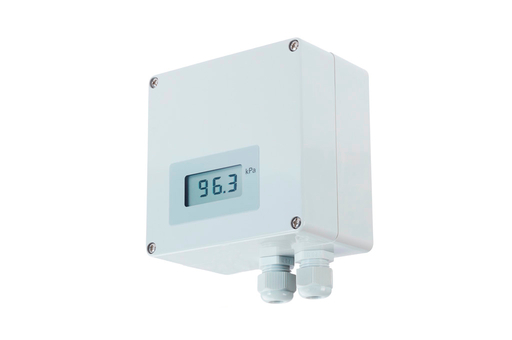

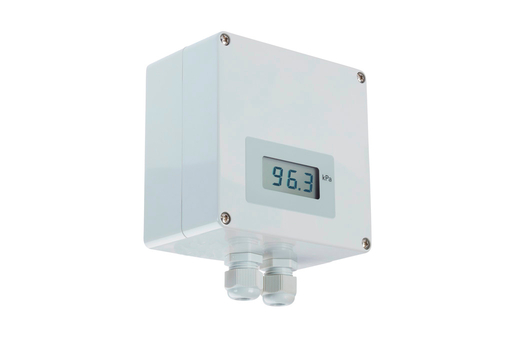

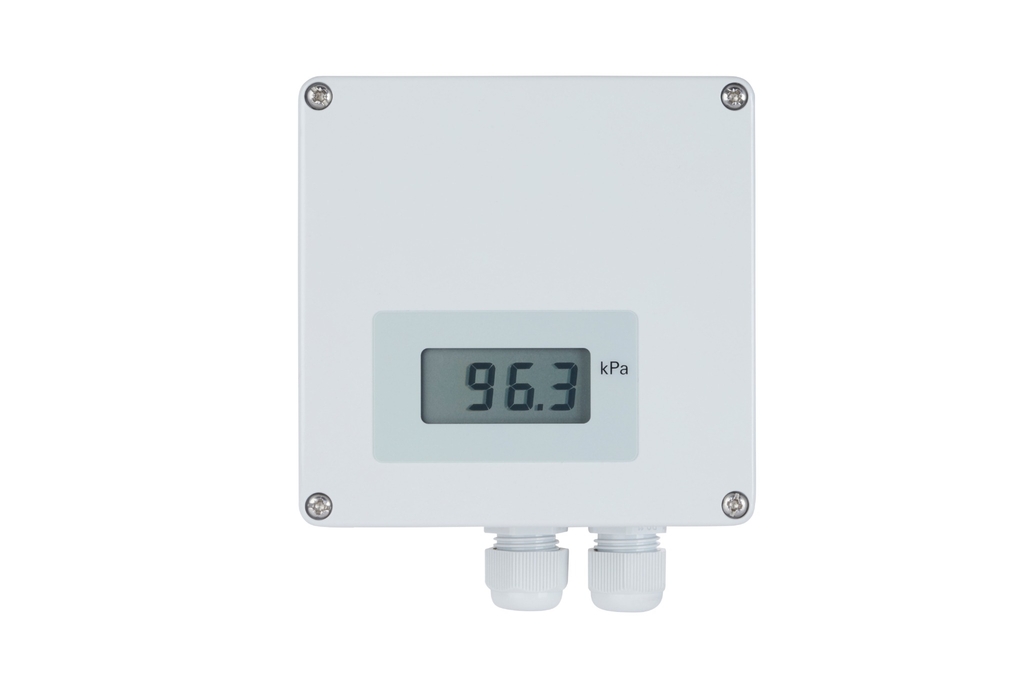

  • Available with display (optional)
  • Can be calibrated

The BA 1000 absolute pressure transmitter is designed to display barometric pressure. At the heart of the unit is an evacuated measurement cell made from an elastic copper material.The deflection of the measurement cell due to atmospheric pressure is measured inductively without making contact. The transmitter emits an electrical output signal proportional to the pressure. The device can be powered using a 24 VDC power supply or a variety of AC voltages.

Options

  • Available with an factory calibration certificate or calibration certificate according to DKD-R 6-1.
  • Also available with LCD.
Measurement ranges
80 .. 120 kPa85 .. 115 kPa90 .. 110 kPa95 .. 115 kPa
Measurement accuracy
± 1 % FSReference ± 0.5 hPa with respect to sea level
Output signal
0 .. 10 V (RL ≥ 2 kΩ)0 .. 20 mA (RL ≤ 500 Ω)4 .. 20 mA (RL ≤ 500 Ω)
Display

3 1/2 digits LCD

Protection class

IP 53

Reduction

0 .. 850 m above sea level (please indicate when placing your order)

Power supply
24 VDC, +20 % / -15 %24 VAC, ± 10%115 VAC, ± 10%230 VAC, ± 10%
Data sheets with technical drawing
