PIZ

Pressure transmitter with two-wire technology (safe cable) for measurement of positive or negative differential pressures

Overview
Technical data
Downloads
Images

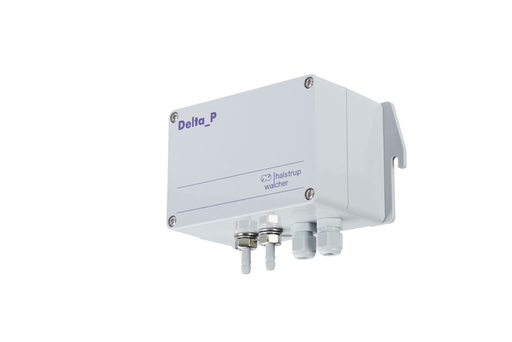

Differential pressure transmitter with two-wire technology (cable-safer) for measurement of positive or negative differential pressures

Special features

  • High level of accuracy and long-term stability
  • Little zero point drift or hysteresis; largely independent of temperature
  • Measurement of positive and negative differential pressures

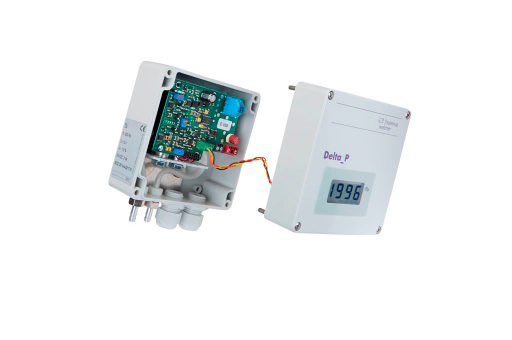

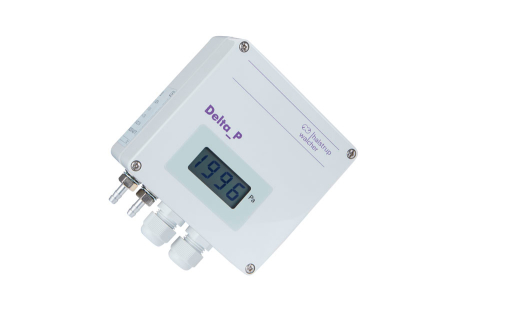

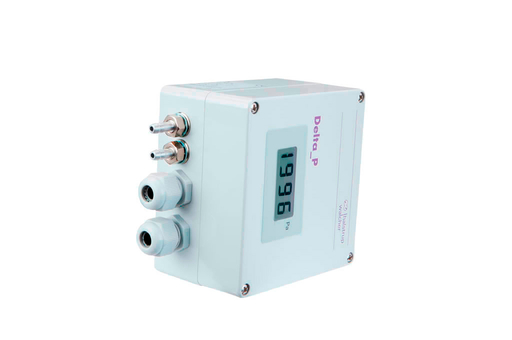

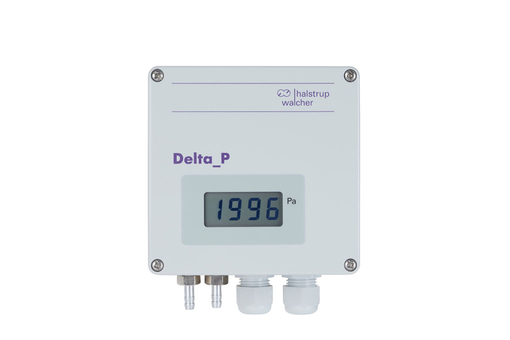

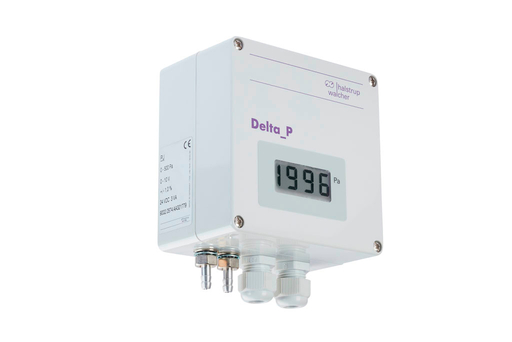

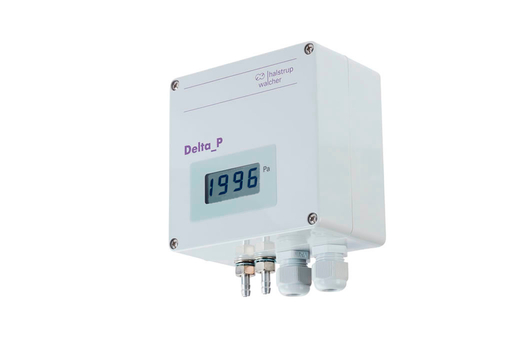

  • LCD display (optional)
  • Output signal 4 .. 20 mA
  • Factory-adjusted attenuation of the output signal of up to 5 s possible (optional)
  • Can be calibrated

This differential pressure transmitter reduces wiring costs thanks to its two-wire technology. An optional display allows measurement values to be read directly on-site in Pa, kPa or mmH 2 O. An optional time constant (up to 5s) allows the instrument to generate an attenuated output signal, even under fluctuating pressure conditions.

Options

  • Available with an factory calibration certificate or calibration certificate according to DKD-R 6-1 (optional).
Measurement ranges
50 / 100 / 200 / 500 Pa1 / 2.5 / 5 / 10 / 20 / 50 / 100 kPaOthers available upon request
Measurement accuracy
± 0.2 % FS for measurement ranges ≥ 250 Pa and ≤ 50 kPa± 0.5 % FS± 1 % FS
Output signal
4 .. 20 mA two-wire (RL ≤ 50 [UB (V) -10 (V)] Ω)
Display

3 1/2 digits LCD

Protection class

IP 65

Power supply
10 .. 32 VDC (two-wire system)
Data sheets with technical drawing
