PSD 43

Integrated direct drive with Nema 23 in vertical construction

Overview
Technical data
Downloads
Images

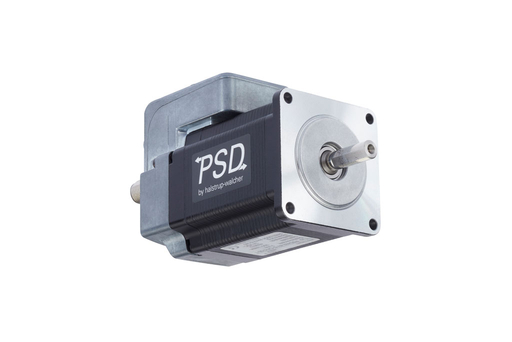

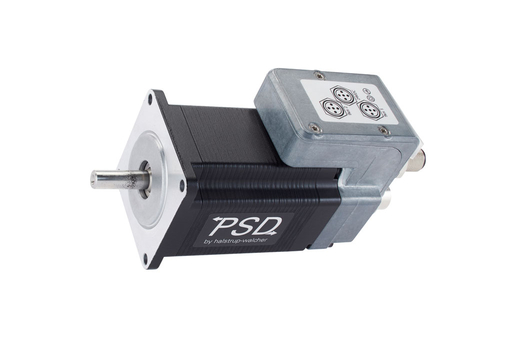

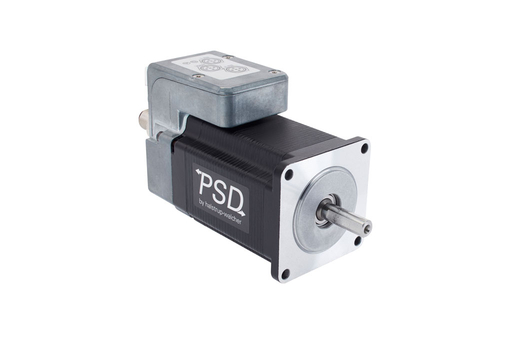

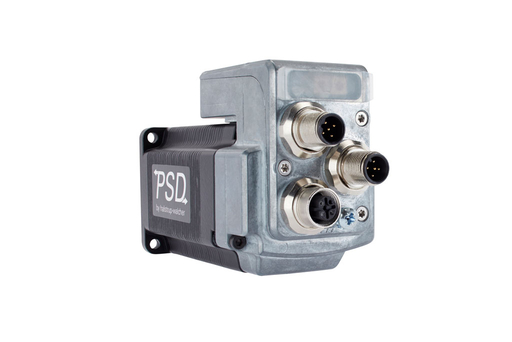

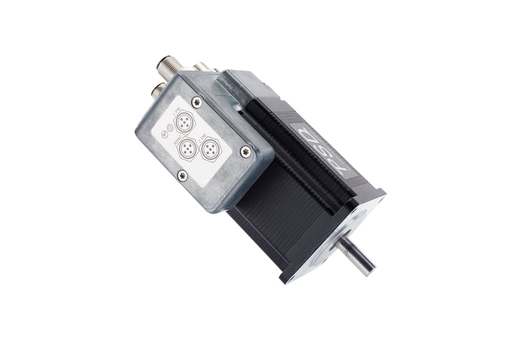

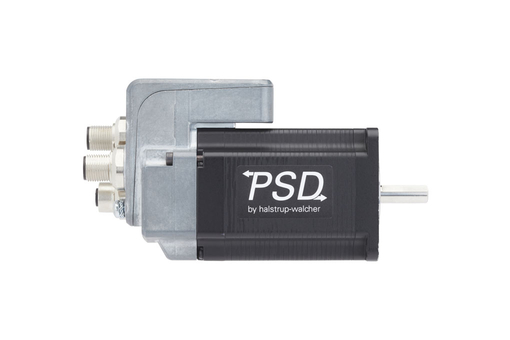

Integrated direct drive with Nema 23, vertical construction

Special features

  • Space-saving, compact design
  • Maximum flexibility due to alignment as vertical or horizontal design (PSD 42) and the optional rotatable actuator housing
  • Galvanically separated supply voltages for control and power electronics
  • Optional gearbox for more torque
  • Precise position feedback thanks to an absolute measurement system without battery
  • Easy and low-cost mounting via 8 or 14 mm hollow shaft
  • Address may be set using the bus or an address switch (not for IO-Link)
  • Status LEDs visible from the outside

PSD 43 direct drive is a mechatronic system with integrated control, bus interface and absolute measurement system without battery. This drive is ideal for automatic format changeover. The stepper motor with integrated control and bus communication permits higher velocities at lower torques.

The absolute measuring system at 977 .. 4026 rotations eliminates the need for time-consuming reference runs and increases the efficiency of the machine. Direct measurement of the position ensures highly accurate positioning. The galvanically separated supply voltages for the control and performance electronics permit the implementation of an emergency shut-off function without interrupting communication with the control module.

The drive can be easily addressed by rotary switches (not for IO-Link). The drives can be mounted on a spindle using the hollow shaft without the need for an additional coupling. The direct drive is also available in horizontal design (PSD 42). The optional rotatable attachment housing allows you to attach the direct drives to the machine in any position, no angle plugs are required.

Options

  • Optional with 8 or 14 mm hollow shaft with torque support
  • Optional with gearbox for up to 8 Nm torque
  • IP 65 only with hollow shaft
  • Software modules for IO-Link: changeover of parameter set, target speed in process data and modulo function
  • Available in company colour on request
Position

Longitudinal construction

Nominal torque / nominal rated speed
PSD 432: 2 Nm / 200 min-1PSD 434: 4 Nm / 100 min-1PSD 436: 6 Nm / 63 min-1PSD 438: 8 Nm / 50 min-1
Max. speed
PSD 432: 1000 min-1 at 0.6 NmPSD 434: 482 min-1 at 0.7 NmPSD 436: 300 min-1 at 1.7 NmPSD 438: 250 min-1 at 2 Nm
Interface / bus communication

CANopen, EtherCAT, EtherNet/IP, IO-Link, PROFINET

Positioning accuracy
± 0.7° (for 8 Nm)± 0,8° (for 6 Nm)± 1,1° (for 4 Nm)± 1.8° (for 2 Nm)
Power supply
24 VDC, ± 10 %
Output shaft
8 mm hollow shaft with torque support14 mm hollow shaft with torque support8 mm solid shaft with flattening
Positioning range
PSD 432: 4026 rotationsPSD 434: 1938 rotationsPSD 436: 1274 rotationsPSD 438: 977 rotations
Protection class

IP 50, IP 65 only with hollow shaft

Data sheets with technical drawing

Note: The bus systems Ethernet/IP, PROFINET, EtherCAT, POWERLINK and SERCOS are summarized within the documentation, e.g. in the step files, under the generic term IE (Industrial Ethernet).

Data sheets with technical drawing
